OM3 Aqua LC Duplex coneector Fiber Optic Patch Cords

Duży Obraz : OM3 Aqua LC Duplex coneector Fiber Optic Patch Cords

Szczegóły Produktu:

Place of Origin:	Shenzhen
Nazwa handlowa:	CY COM
Orzecznictwo:	ISO ROHS

Zapłata:

Minimum Order Quantity:	10
Delivery Time:	5-10 work days
Payment Terms:	T/T, Western Union, MoneyGram, L/C

Kontakt

Szczegółowy opis produktu

Product name:	Fiber patch cord	Cable color:	Aqua or customized
length:	1m,2m,3m or customized	Cable Dimension:	0.9mm, 2.0mm,3.0mm
Connector:	LC/UPC- LC/UPC	Model:	Mutil Model
wavelength:	1310nm or 1550nm	Cable type:	G652D, G657A1,OM3
Podkreślić:	OM3 Aqua Fiber Optic Patch Cords , 0.9mm Fiber Optic Patch Cords , 0.9mm OM3 Optic Patch Cords

OM3 Aqua green LC UPC Mutilmode Duplex 3.0mm Fiber Optic Patch Cord

Feature:

Price-Competitive
Low Insertion Loss & PDL
Factory-terminated and Tested
Fiber Options: G.652D /G.657A1/OM1/OM2/OM3 and PM Panda Fiber
Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
Polishing Options: PC/UPC/APC
Feature Connector with Ceramic FerrulesApplications

Specifications:

Simplex, single fiber, one connector on each end of the cable
Standard zip cord jacketing, OFNR
Corning fiber and cladding, Singlemode (9/125)
APC and/or UPC ends 100% inspected and tested for correct return loss and insertion loss levels
1m,2m,3m,5m.... in length

Specification:
1	Connector Type: SC-SC
2	Mode: single mode
3	Polishing: PC
4	Insertion Loss: ≤0.2 dB
5	Return Loss: ≥52dB
6	Exchangeability: ≤0
7	Repeatability: ≤0.2dB/1000times
8	Operation Wavelenghth: 850nm,1310nm,1550nm
9	Operating Temperature: -30 °C +75 °C
10	Storage Temperature: 40 °C ~ +85 °C
11	Cable OD: 3.0mm/2.0mm
12	Cable Material: OFNR,LDZH&Polarization maintaining
13	Mode: 9/125
14	Fiber Cable Type: PVC 3.0mm
15	CE/Rohs/FCC: yes

Technical Parameters

Connector type	FC,SC,LC,ST,MU,E2000,D4,DIN
Fiber mode	SM			MM
End face	PC	UPC	APC	PC
IL(dB)	≤0.3	≤0.2	≤0.3	≤0.3
RL(dB)	≥45	≥50	≥60	≥35
Other model	MT-RJ,MPO
IL(dB)	≤0.7	/	≤0.7	≤0.5
RL(dB)	≥30	/	≥50	≥25

Application:

1. FTTH FTTB FTTX Network

2. CATV type FTTH, FTTB & FTTP systems.

3. Fiber optic patch cord was widely used in all kinds of optical network solutions , such as Security , WAN, LAN,Test Equipment.

Quality Guarantee:

(1) Source Guarantee. long-term suppliers keep the raw material quality stable. All the products are ROHS certificated and satisfy exporting quality level demand.

(2) Quality Test. 1；Raw materials will be put into production line production only after passing IQC inspection,

2；IPQC inspects the production line to ensure that the production meets the quality requirements.

3；OQC tests product performance and inspects packaging to ensure that each product meets customer quality requirements

(3) Optical Test. Our products comply with IEC and ITU standards

(4) At least 30% spot test by Quality Assurance Department after the products finished.

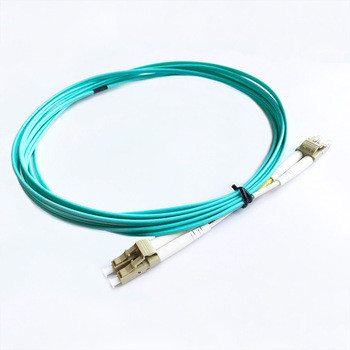

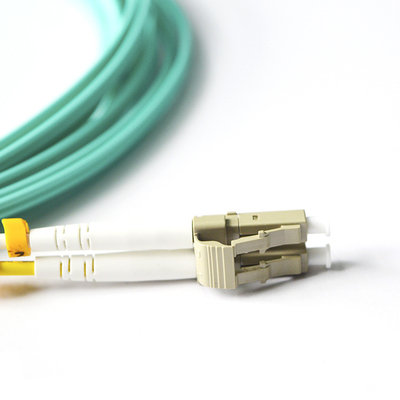

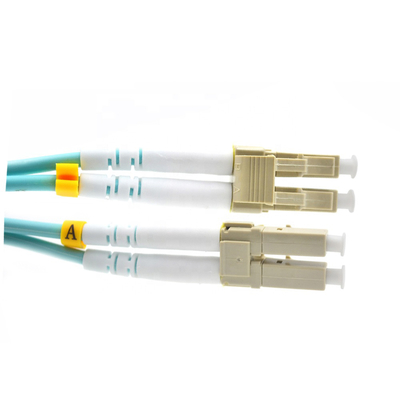

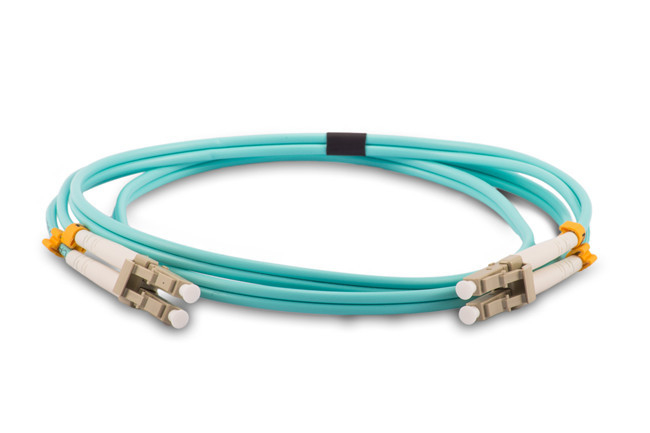

Product picture
