Szczegóły Produktu:
Zapłata:
|
| Polarity: | A/B/C | Loss data: | Elite loss/Standard loss |
|---|---|---|---|
| Connector type: | Female / Male | Cable color: | Yellow |
| Cable Material: | LSZH / OFNP / PVC | Fiber type: | G652D / G657A /G657B |
| LC Connector Type: | Duplex / Simplex / Uniboot | Breakout lengthe: | 0.5M / 1M /1.5M / Customized |
| Podkreślić: | G652D 12 core MPO MTP,G652D Singlemode SM MPO MTP,G652D LSZH OFNP MPO MTP |
||
Single mode SM MPO Breakout Patch Cord 12 core MPO to 6 LC-DX Fanout Cable
Description:
4cores/8cores/12cores/24cores breakout fan-out patch cords, MPO/MTP-SC OM1/OM2/OM3. Key up, Key down types. Short length(<=35cm) used inside of module box.
MTP/MPO cables arecomposed of MTP/MPO connectors and fiber optic cables, other connectors such asLC may also be found in some kinds of MTP/MPO cables. The fiber cables used aregenerally OM3 and OM4, which are laser optimized multi-mode optical fibers. Itis important to have an overall understanding of MTP/MPO connectors (known asmulti-fiber push-on and also as multi-path push-on).
Features:
Backbone installation
100% tested before delivery
MTP And MPO available
Use 12/24 Cores Fiber Connector
Trunk Cable Counts usually 12 / 24 / 36 / 48 / 72 /96 / 144-fibers
3.0/3.6 mm Round Cable or Customized
SM/OM1/OM2/OM3/OM4 or Customized
LSZH, OFNR, OFNP available
Applications:
The Data Center application with high dense degree environment
The optical fiber to the building
The internal connector application in fiber equipment.
Specifications:
| arameter | Unit | SM Standard | SM Low loss | MM Standard | MM Low loss | |
| Insertion loss | Typical | dB | 0.35 | 0.2 | 0.35 | 0.2 |
| Max | 0.75 | 0.35 | 0.65 | 0.35 | ||
| Return loss | dB | APC≥50 | ≥ | ≥35 | ||
| PC≥40 | ||||||
| Repeatability | dB | ≤0.1 | ||||
| Interchangeabilty | dB | ≤0.3(Connector Randomly) | ||||
| Durability | dB | ≤0.3 | ≤0.3(change 1000 matings) | |||
| Vibration | dB | ≤0.3(10~55Hz) | ||||
| Operating Temperature | ℃ | -25~+70 | ||||
Order infomation:
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |

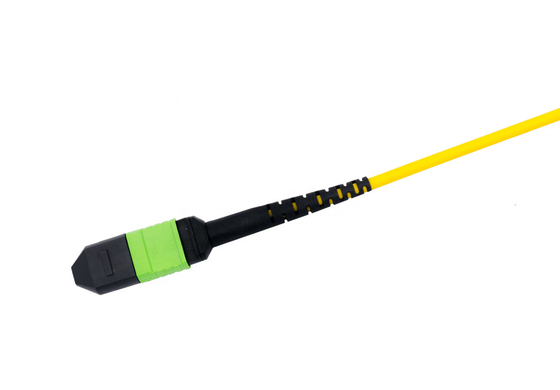

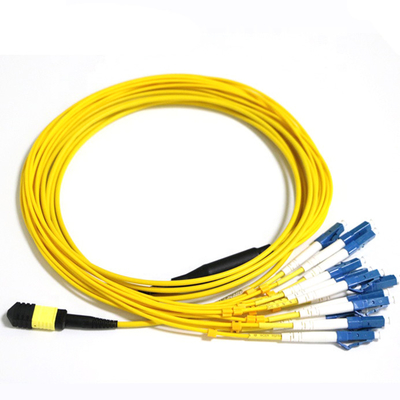

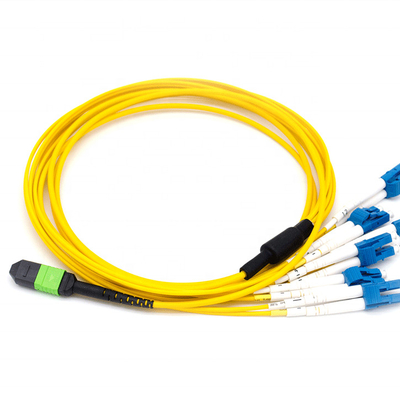

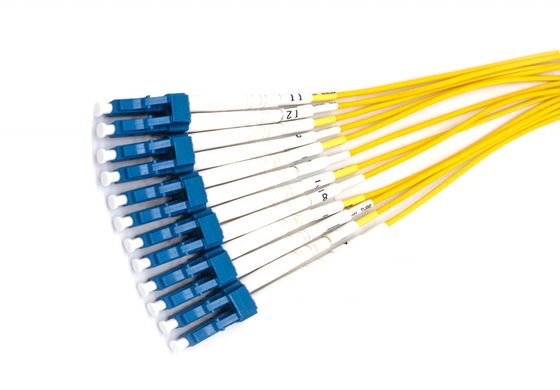

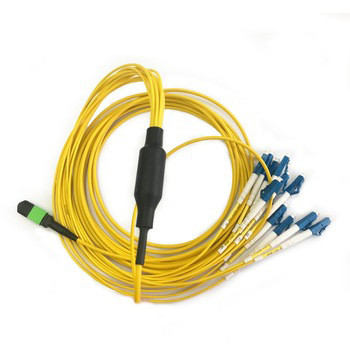

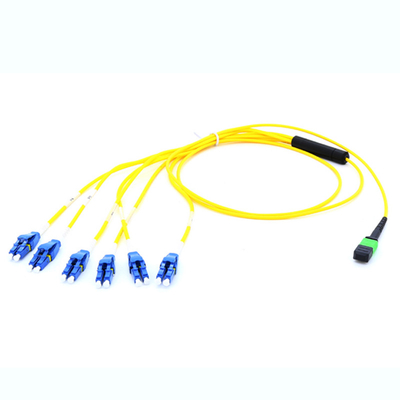

Drawing and Product Picture:
