| Apply port: | LC Duplex / LC Quadruple / MPO Simplex | Capacity: | 12core,24core |
|---|---|---|---|
| Size: | 110*93*35mm | Material: | Cold Rolled Steel / ABS Plastic |
| Color: | Black | Application: | Network, Telecommunications |
| Fiber type: | Singlemode / Mutilmode | Aadpter color: | Beige / Blue / Green /Auqa / purple |
| Podkreślić: | 12 Core Mtp Cassette Module,Duplex Mtp Cassette Module,LC Connector Mtp Cassette Module |
||

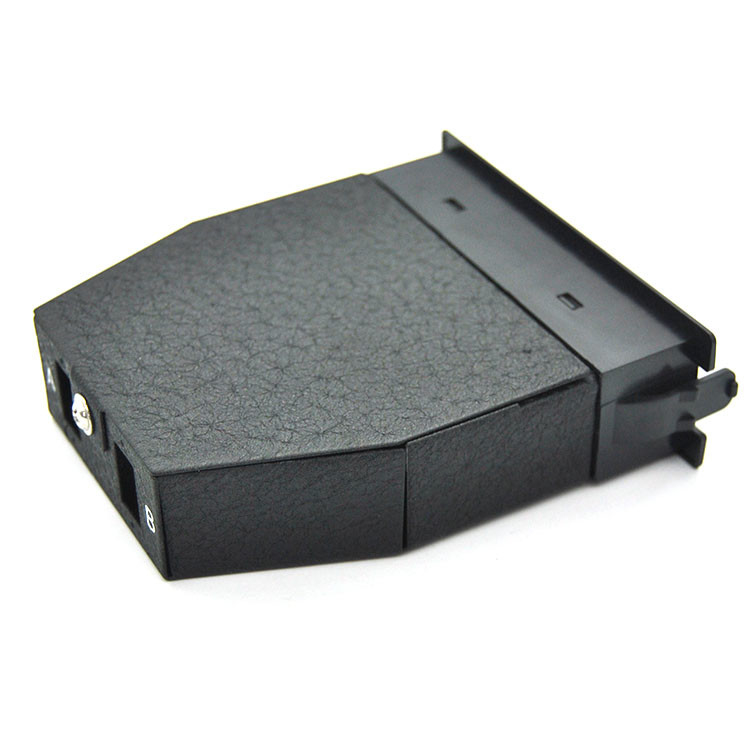

LC Connector Duplex 12 Core Mtp Cassette Module

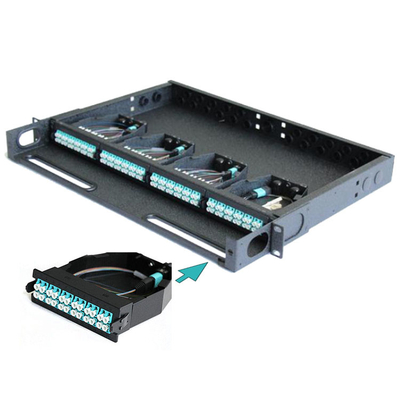

12 24 Core MTP MPO Module Cassette For Fiber optical patch panel equipped With LC Connector
Introduction:

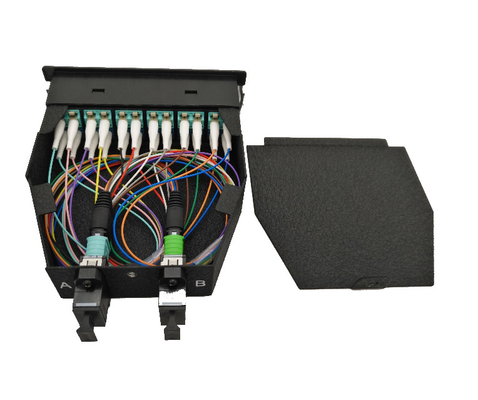

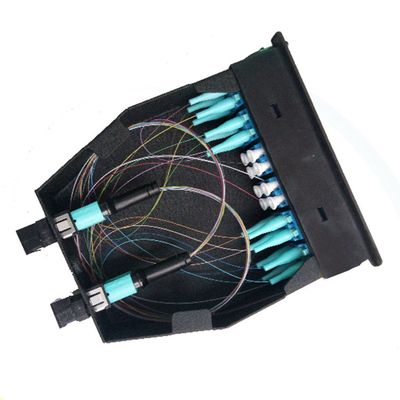

The MPO/MTP module Cassettes are mainly used to divide the 12 or 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patch cords, the output of the modules can be directly connected with the equipment, frame or the client end.
Features:
1. MTP/MPO standard compliant multifibre connector
2. High-density and small design;Easy and fast installation
3. 12 and 24 fiber versions – 12 LC (Duplex) / SC (Simplex) optical parts
4. Available Multimode (62.5/125, Standard 50/125 and OM3,OM4) and Single mode(OS1/2)fiber.
5. Factory-terminated and -tested cable and apparatus for instant field connections with guaranteed
6. quality and performance.

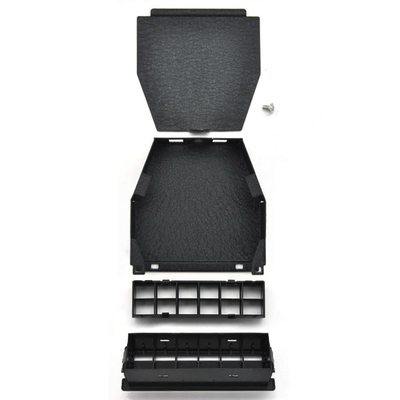

7. Metallic shell with high strength protect the inner fibers effectively
8. Supports easy reconfiguration for moves, adds, and changes
9. High performance zirconia sleeve adaptors
Application:
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures
Specification:
| arameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3/OM4) |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | SC/LC/ST/LC/MU/MTRJ/MPO/E2000 | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
| Insertion Losss(dB) TIA/EIA-455-107 |
≤ 0.3dB (PC/UPC/APC) |
≤ 0.3dB (PC/UPC) |
| Return Loss(dB) TIA/EIA-455-107 |
≥45dB(PC/UPC) ≥55dB(APC) |
≥35dB(PC/UPC) |
| Exchangeability | ≤ 0.2dB | |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
| Package | 1unit/bag | |
| *All values specified are with connectors. | ||
