Szczegóły Produktu:
Zapłata:
|
| Item: | LC / UPC Adapter | Color: | Blue |
|---|---|---|---|
| Structure: | Flangeless | Test: | 100% |
| Materials: | FBT+PC | Ferrule material: | Ceramic |
| Cap color: | White | Type: | Simplex |
| Podkreślić: | Flangeless Lc Fiber Optic Adapter,Simplex Flangeless Fiber Optic Adapter,Plastic Flangeless Optic Adapter |
||

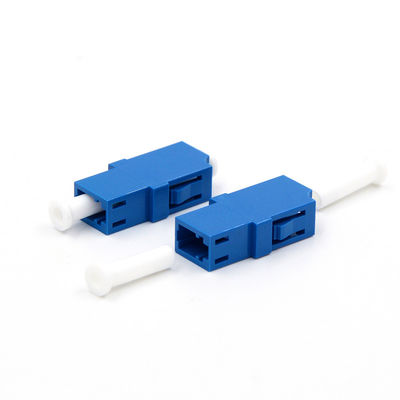

Blue Simplex Plastic Flangeless Lc Fiber Optic Adapter
LC / UPC Simplex coupler,Plastic Fiber optical adapter Single mode Flangeless Blue color
Description:
LC Adapters were developed by Lucent Technologies. They are composed of a plastic housing with an RJ45 push-pull style clip.
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
Features:
Simplex / Duplex
High reliability & stability
Ceramic or Bronze Sleeve
Low insertion loss, high return loss
High precision of mechanical dimensions
Application:
Local Area Network
CATV System
Telecommuniction Networks
Active device termination
Spare parts:
| No. | Item | Material | Whether or not RoHS | Flame retardant grade |
| 1 | Sleeve | ceramics | Y | Flame retardant |
| 2 | inner core | PC | Y | V-0 |
| 4 | shell | PC | Y | V-0 |
| 5 | Dust cap | PP | Y | Dissatisfaction |
| 6 | Metal bracket | SUS304 | Y | Flame retardant |
Specification:
| Item | Parameter |
| Insertion loss | ≤0.3dB |
| Durability | ≤0.3dB after 1000cycles |
| Operating temperature | -25℃～75℃ |
| Storage temperature | -25℃～75℃ |

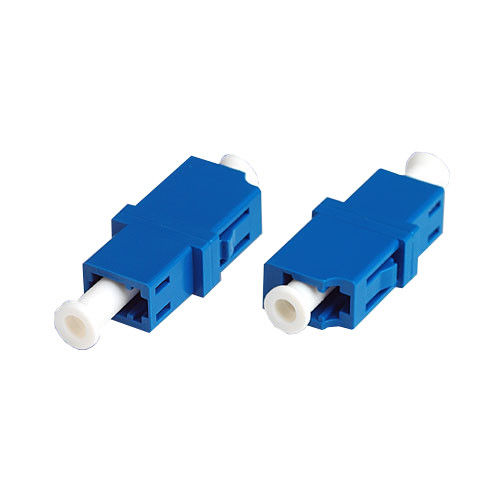

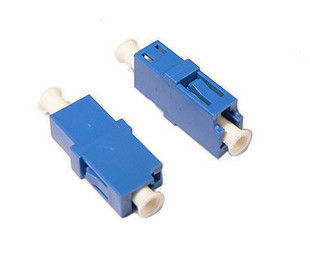

Pictures and Drawing:
