Szczegóły Produktu:
Zapłata:
|
| Item: | ST DX Rectangle adapter | Cap Color: | Yellow / Red / Black / Customized |
|---|---|---|---|
| Shape: | Round Type | Test: | 100% |
| Materials: | Zinc / Copper alloy | Type: | Duplex |
| Fiber type: | Singlemode / Mutilmode | Cap Shape: | Round or Square |
| Podkreślić: | UPC Fiber Optic Coupler,Rectangle UPC Coupler,ST DX UPC Coupler |
||

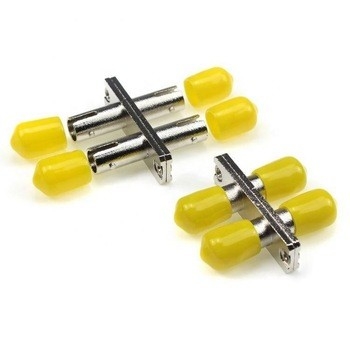

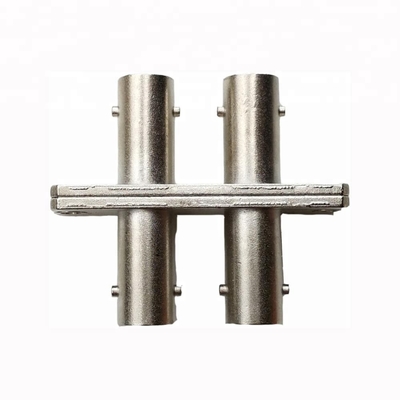

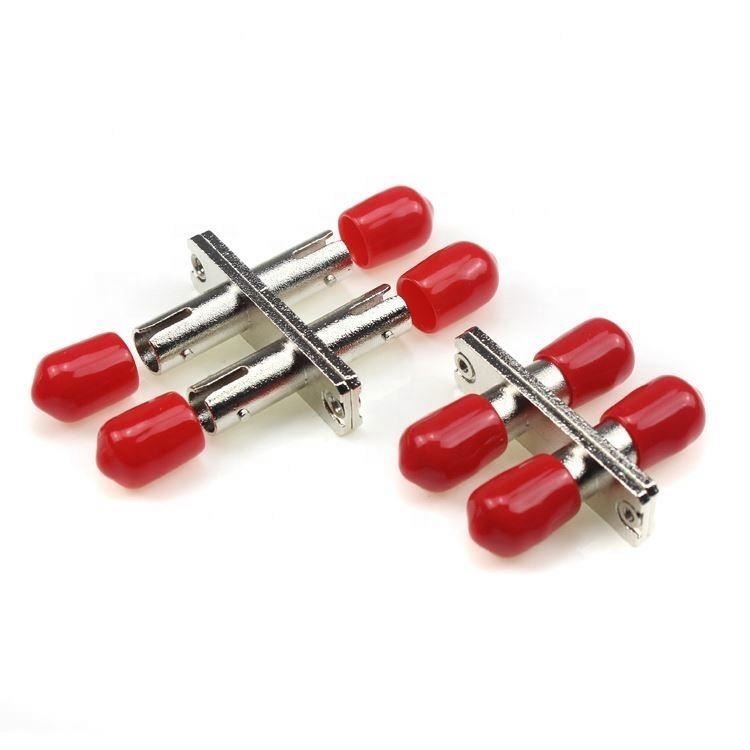

Metal ST DX Rectangle Single Mode UPC Fiber Optic Coupler
Metal ST DX Rectangle-Flange Adapter , Zinc alloy Duplex Fiber Optic coupler
Description:
Fiber optic adapter (also fiber optical coupler) is available in single mode UPC and multimode SPC to sastify to connect single mode or multimode patch cable.
ST fiber optic adapters are all threaded type, It's a small device designed to terminate or link the fiber optic cables or fiber optic connectors between a fiber optic lines
Features:
Good Compatibility
Accurate Mechanical Dimensions
High Reliability and Stability
Zirconia or Phosphor Bronze Sleeve
Single mode, Multi-mode Versions
Various Types of Connectors FC,SC,ST,MU,LC,MTRJ,MPO
Low Splicing Loss
Application:
Telecommunication Network
Testing Equipment
Local Area Network(LAN)
CATV
Engineering Recovery
FTTH
Connect Different Types of Ceramic Ferrule Bores
Specification:
| Connector Type | LC,FC,SC,MU,ST,MTRJ,Hybrid | |
| Fiber Type | Singlemode | Multimode |
| Insertion Loss | ≤0.2dB | |
| Return Loss | PC≥45dB;UPC≥50dB;APC≥60dB | ≥30dB |
| Durability | ≤0.2dB,after 1000times | |
| Operation Temperature | -40℃~+75℃ | |
| Storage Temperature | -40℃~+85℃ | |

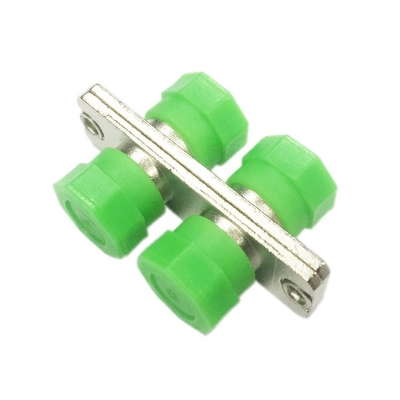

Drawing and Pictures:
